Quality Standards |
|
| 1) |
Highest quality standard as all machined parts are made with CNC or equivalent machinery. |
|
| 2) |
Products are tested as per standards available or as per customer’s requirement. |
|
| 3) |
Inspection and testing before dispatch - test certificate provided. |
| |
|
|
| |
| |
|
| |
 |
| |
| |
Industrial Muddy Dewatering Pump |
|
|
 |
 |
| |
| |
FEATURES |
* |
Efficient design &performance as available as per international market. |
* |
Automatic air releasing while priming , design speciality with added feature of quick & self priming. |
* |
Design of impeller is semi open/open vane type for non ciogging and enable to handle solids. |
* |
Back pull out design for repair possible without disturbing pipelines. |
* |
All rotating parts are dynamically balanced for smooth running and low vibration. |
* |
Long product life due to replaceable wearing parts. |
* |
Available in mono block pump set and bare pump design. |
* |
Bare pump can be coupled with either motor or engine. |
* |
Motor designed for wide voltage fluctuation for mono block pump sets. |
|
from 180 to 240 volts for single phase |
|
from 350 to 450 volts for three phase |
* |
Easy maintenance due to availability and interchangeability of spares. |
|
| |
| |
APPLICATION |
* |
Industrial : Petroleum product ,Ceramic product Chemicals,Thermal plants etc. |
* |
Marine works : Handling liquids from docs, ports and vessels etc. |
* |
Civil works : Dewatering basements, cellars, channels etc. |
* |
Salvage operation : Fire fighting and saving ship or cargo. |
* |
Public utilities : For pumping muddy water, sewage, polluted liquids including solids and in swimming pool. |
|
| |
| |
| DIRECTION OF ROTATION WHEN VIEWED FROM SUCTION SIDE |
* Models RPM-105, RPM-106 S are clockwise.
* Other models are anti clockwise. |
| |

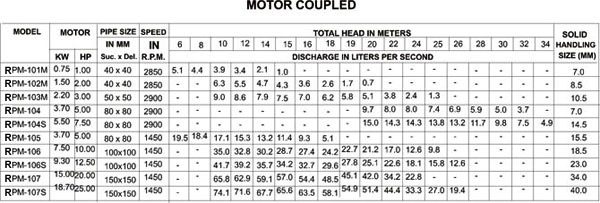

| RANGE |
* Head |
: |
6 to 34 meters |
* Discharge |
: |
76.8 to 1.0 liters per second |
* Pipe size |
: |
40x40 to 150x150
mm |
|
| |
POWER RANGE |
For motor drive bare pump : 0.75 kW to 18.70 kW (1.00 HP to 25.00 HP) For engine drive bare pump: 4.00 kW to 19.50 kW (6.00 HP to 26.00 HP) For mono block pump :0.75 kW ti 5.50 kW (1.00 HP to 7.50 HP) |
| |
MATERIAL OF
CONSTRUCTION
Regular supply |
* Pump/motor body |
: |
C.I. Gr. FG 200 |
* Impeller |
: |
C.I. Gr. FG 200 |
* Shaft |
: |
EN-8D |
* Shaft sleeve |
: |
SS-410 |
* Stamping |
: |
CRNGO, M-45 grade |
*Gland |
: |
Graphite asbestos |
*Bearings |
: |
SKF / Equivalent |
|
 |
|
| |
OPERATIONAL
SUPPLY
Regular supply |
* Impeller |
: |
SS-304 / SS-316 |
* Wear Plate |
: |
SS-304 / SS-316 |
* Shaft |
: |
SS-410 / SS-304 / SS-316 |
* Shaft sleeve |
: |
SS-304 / SS-316 |
*Gland Packing |
: |
Teflone |
|
| |
* Also available in all S.S. 316 construction on request. |
| |
|
| |
Model RPM-101M is available in single phase or three phase power supply, all other models are available in three phase power supply only. |
| |
| |
FEATURES |
* |
Better efficiency and performance due to new hydraulic design in self priming mud/sewage pump. |
* |
Excellent priming action without foot valve with automatic air release. |
* |
Easy maintenance without disturbing pipe lines due to back pull out design. |
* |
Impeller design is semi open/open vane type for non clogging and enable to handle solids. |
* |
Long product life due to replacement wearing parts. |
* |
Easy maintenance due to availability and interchangeability of spares. |
* |
Available in mono block pump set and bare pump design. |
* |
Bare pump can be coupled with either motor or engine. |
* |
Motor designed for wide voltage fluctuation for mono block pump sets. |
|
From 180 to 240 volts for single phase.
From 350 to 450 volts for three phase. |
|
| |

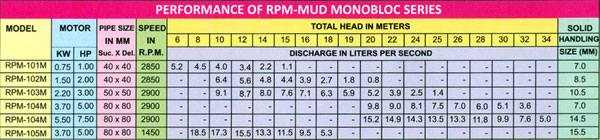

RANGE |
| * Capacity |
Head |
: |
6 to 34 meters |
Discharge |
: |
20.5 to 1.0 liters per second |
Pipe size |
: |
40 x 25 mm to 80 x 80 mm |
* Power rating |
For motor driven bare pump |
: |
0.75 kW to 5.50 kW (1.00 HP to 7.50
HP) |
For engine driven bare pump |
: |
4.00 kW (6.00 HP) |
For monoblock pump |
: |
0.75 kW to 5.50 to 5.50(1.00 HP to 7.50
HP) |
|
| |
MATERIAL OF
CONSTRUCTION
Regular supply |
| * Pump casing /motor body |
: |
C.I Gr. FG 200 /SS-304 (CF-8) /SS-316
(CF-8m) |
| * Impeller |
: |
C.I. Gr. FG 200 /SS-304 (CF-8)/SS-316
(CF-8m) |
| * Diffuser |
: |
C.I. Gr. FG 200/ SS-304 (CF-8)/SS-316
(CF-8m) |
| * Shaft |
: |
EN-8 / SS-410 / SS-304 SS-316 |
| * Shaft sleeve |
: |
SS-410 /SS-304 / SS-316 |
| * Bearing Housing |
: |
C.I. Gr. FG 200 |
| *Sealing |
: |
Carbon - Ceramic Seal/TC-TC seal |
| *Stamping |
: |
CRNGO, M-45 grade |
| *Bearings |
: |
SKF /
Equivalent |
|
| |
| APPLICATION |
*Public utilities |
: |
For pumping muddy water, sewage,
polluted liquids including solids and in
swimming pool |
*Industrial |
: |
Petroleum product, ceramic
product, chemicals,thermal plants etc. |
*Civil work |
: |
Dewatering basements, cellars,
trenches and in construction. |
*Marine works |
: |
handling liquids from docs, ports
and vessels etc. |
*Salvage operation |
: |
Cooling water for marine engines
and shovels. |
|
| |
|
| |
DIRECTION DIRECTION OF
ROTATION WHEN VIEWED FROM SUCTION SIDE
Model
RPM-116 is clockwise
Other models are anti
clockwise. |
|
 |
 |
 |
 |
|
| |
|
| |
 |
|
