Quality Standards
1)
Highest quality standard as all machined parts are made with CNC or equivalent machinery.
2)
Products are tested as per standards available or as per customer’s requirement.
3)

Inspection and testing before dispatch - test certificate provided.






Centrifugal Pumps


  FEATURES
*
High efficiency and high discharge rate at less power consumption.
*
Casing and Impeller are made of C.I. casting grade FG 200 by shell core molding process for required strength with smooth finish of internal vanes for better hydraulic performance.
*
Anticorrosive stainless steel shaft.
*
Impeller is dynamically balanced for low noise and longer bearing life.
*
Long life due to replaceable wearing parts
*
Easy spares availability.
*
Suction lift up to 8 meters,
*
The 'Back Pull Out' design enables the pumps to service without disturbing the pipe lines.
*
Extremely simple in construction, Easy maintenance and Easy gland packing replacement.
*
Available in various pipe sizes.
*
Sealing arrangement with gland packing is standard supply, mechanical seal arrangement available on request.

  RANGE
*
Pressure : Up to 3.5 kg/cm
*
Discharge : 2000 LPH to 55000 LPH
*
Pipe size : 25 x 25mm to 80 x 80mm
*
Power rating : 0.50 HP to 2.00 HP


MATERIAL OF CONSTRUCTION
*
Casing : C.I. Gr.FG 200
*
Stuffing Housing : C.I. Gr.FG 200
*
Bearing Housing : C.I. Gr.FG 200
*
Impeller : C.I. Gr.FG 200
*
Pump Shaft : S.S.-410
*
Pipe Flange : C.I. Gr.FG 200
*
Gland Bush : C.I. Gr.FG 200
*
Bearing Flange : C.I. Gr.FG 200
  Also available in stainless steel construction on request.


APPLICATION
*
Industries
*
Irrigation
*
Water supply
*
Sprinkler
*
Building

METRIC TO U.S. SYSTEM CONVERSIONS, CALCULATIONS, EQUATIONS AND FORMULAS

* Millimeters (mm) x 0.03937 = inches (")(in) * Bars x 14.5038 = pounds square inch (PSI)
* Centimeters (cm) x0.03937 = inches (")(in) * Kilograms (kg) x 2.205 = Pounds (P)
* Meters (m) x 39.37 = inches (")(in) * Kilometers (km) x 1093.62 = yards (yds)
* Meters (m) x 3.281 = feet (") (ft) * Square centimeters x0.155 =square inches
* Meters (m) x 1.094 =yards (yds) * Square meters x 10.76 = square inches
* Kilometers (km) x 0.62137 = miles (mi) * Square Kilometers x 0.386 = square miles
* Kilometers (km) x 3280.87 = feet (") (ft) * Cubic centimeters x 0.06102 = cubic inches
* Liters (l) x 0.2642 = gallons (U.S.)(gais) * Cubic meters x 35.4315 = cubic feet
* Liters (l) x 0.0353 = cubic feet

AREA AND DISTANCE CONVERSIONS, EQUATIONS, CALCULATIONS AND FORMULAS

* Acre X 43560 = square feet * Miles x 1760 = yards
* inches x 0.0833 = feet * Square Miles x 259 = hectares
* Feet x 12 =inches * Square Kilometers x 100 = hectares
* Square mile ("Sections") x 640 = Acres * Acres x 40.47 = areas
* Miles x 5280 = feet * Hectares x 100 = areas
* Circumference of circle x 0.3183 = Diameter of the circle * Areas x 100 = square meters
* Diameters of circle x 3.14 = Circumference of circle * Yards x 3 = feet
* Diameters squared x 0.7854 = Area of circle * Acres x 4840 = square yards
*Radius squared x 3.14 = Area of circle

WATER PRESSURE EQUATIONS, CONVERSIONS, FORMULAS AND CALCULATIONS

*
Feet head (of water) x 4.33 = Pounds per square inch (PSI )
*
kgs. per sq.cm.x14.223 =pounds per sq. inch (PSI)
*
Feet head (of water) x 0.3049 = meters head (of water)
*
Pounds per square inch(PSI)x2.31= feet head (ft. hd.)
*
Feet head (of water)x 0.0295= atmospheres
*
Pounds per square inch(PSI)x0.0703= kgs. per sq.cm
*
Feet head (of water)x2.988 = kilo Pascals
*
Pounds per square inch(PSI)x0.06895 = bars
*
Meters head (of water) x 3.28 = feet head (of water)
*
Pounds per square inch(PSI)x0.06805 = atmosphere
*
atmosphere (Atm) x 1.013 = 1 bar (b)
*
Pounds per square inch(PSI)x2.31= feet head (of water)
*
atmosphere x 14.696 =Pounds per square inch (PSI)
*
Pounds per square inch(PSI)x6.896= kiloPascals
*
bars x 1.033 = kilograms per square centimeter
*
kilopascal x 0.145 = Pounds per square inch (PSI)
*
bars x 14.67 = Pounds per square inch (PSI)
*
kilopascal x 0.01 = bars
*
bars x 100 = kilopascals
*
kilopascal x 0.334 = feet head (of water)

FLOW AND WATER VOLUME FORMULAS, CONVERSIONS, CALCULATIONS AND EQUATIONS

*
US Gallons per minute(gpm)x0.1337=Cubic feet per minute
*
Q=AV (quantity =area x velocity)
*
Cubic feet per minute x 7.48=U.S. gallons per minute
*
one inch of water depth=0.62 gallons per sq. foot of area
*
Cubic feet per second x 448.8=U.S. gallons per minute
*
GPM x 226.8 = liters per hour
*
U.S, gallons per minute x 0.00223=Cubic feet per second
*
Cubic feet per minute x 1699=liters per hour
*
Acre inches per hour x 453 = U.S, gallons per minute
*
arce inches per minute x 1712.3 = liters per minute
*
British Imperial gallons x 1.201 = U,S. gallons
*
arce feet x 1231.7 = cubic meters
*
U.S. gallons x 0.833 = British Imperial gallons
*
arce inch x 102.64 = cubic meters
*
Arce feet x 325.850 = U.S, gallons
*
velocity (feet/second) x 0.3047 = velocity (meters/second)
*
Arce inches x 27154 = U.S. gallons
*
velocity meters/second) x 3.281 = velocity (feet/second)
*Velocity in feet per second = (0.408 x GPM) /inside diameter of pipe in inches, squared

* As we are constantly endeavoring to improve the performance of our products, we reserve the right to make alterations   from time to time and as such our products may differ from that detailed in this publication.
* All pumps employ a prime mover motor suitable for 230 V, 50 Hz, A.C. supply of single phase or 415 V, 50 Hz, A.C.   supply of three phase.

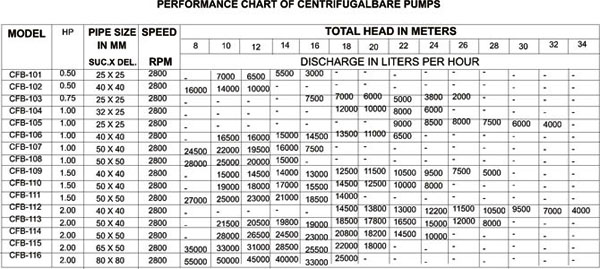

* The performance curves & data are at rated power supply and only indicative.
* Direction of rotation, marked with an arrow on the casting of each pump, check before coupting with the prime mover.
