Quality Standards |
|
| 1) |
Highest quality standard as all machined parts are made with CNC or equivalent machinery. |
|
| 2) |
Products are tested as per standards available or as per customer’s requirement. |
|
| 3) |
Inspection and testing before dispatch - test certificate provided. |
| |
|
|
| |
| |
|
| |
 |
| |
| |
External Gear Type EG Series |
|
|
 |
 |
| |
|
| |
FEATURES
|
| * |
All positive displacement
rotary gear pumps are self priming pumps with
suction liftof 5 meters at mean viscosity and
speed 1440 rpm.
|
| * |
The EG series of Rotomatik pump
has modified profile of teeth to give
accuratedischarge within the pressure
range.
|
| * |
The helical gear design
delivers constant volume without any pulsation.
It alsoreduces internal slippage and gives high
volumetric efficiency.
|
| * |
Compact in size and highly
economical
|
| * |
All these are self llubricated
pumps recommended for use where the liquid to
betransferred has lubrication properties. Hence
the bearings are lubricated by thepumping fluid
and do not need any external
lubrication.
|
| * |
Easy maintenance due to
availability and interchangeability of
spares.
|
| * |
All Rotomatik gear pumps are
designed and assembled with close tolerances to
reducethe mechanical losses, thus it consumes
less power and operats at higher
efficiency.
|
| * |
Single shaft design permits
pump dismantling without removing pump from base
or disconnecting
pipes
|
|
| |

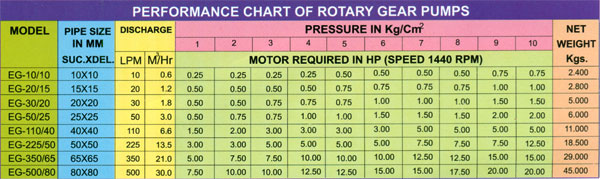

| RANGE
|
* Pressure |
: |
Up to 10 kg/cm2 |
* Discharge |
: |
10 LPM to 500 LPM |
* Pipe size |
: |
1/4” BSP to 3”
BSP |
|
| |
| MATERIAL OF
CONSTRUCTION |
* Pump Body |
: |
C.I. Gr. FG 200 |
* Back Cover with P.R.V |
: |
C.I. Gr. FG 200 |
* Gland Cover |
: |
C.I. Gr. FG 200 |
* Rotor Assembly |
: |
Gear - SAE 8620, Shaft-EN 8 |
* Bush |
: |
Sintered Bronze |
* Oil Seal |
: |
Nitrile Rubber/Viton Rubber |
*Rotor Shaft Key |
: |
S.S. |
*Packing |
: |
Gasket Paper |
|
 |
|
| |
Also available in stainless steel (CF 8 &
CF 8M) construction on request. |
| |
| APPLICATION |
| |
ROTOMATIK”
rotary gear pumps are useful for handling
following viscous and semi viscous liquid,
* Clean lube oil, Castor oil, Coconut oil,
Ground nut oil, cotton seed oil and Hydraulic
oil.
* All kind of vegetable oils.
* Paints
& Varnish.
* All kind of fish and animal
oils.
* Soap solutions.
* Sugar molasses and
syrups.
* Printing Ink.
* Glycerin, Glycol
and Glue.
* Viscous Chemical. |
| |
Rotary gear pumps are widely used in
Paper Mills, Refineries, Steel Mills and Textile
industries and
foundries. |
|
 |
 |
 |
 |
|
| |
|
| |
 |
|
