Quality Standards |
|
| 1) |
Highest quality standard as all machined parts are made with CNC or equivalent machinery. |
|
| 2) |
Products are tested as per standards available or as per customer’s requirement. |
|
| 3) |
Inspection and testing before dispatch - test certificate provided. |
| |
|
|
| |
| |
|
| |
 |
| |
| |
Monobloc Gear Pump Units Type MIG and MEG |
|
|
 |
 |
| |
|
| |
|
Rotomatik Monobloc gear units is positive displacement unit directly mounted on motor shaft. It is self priming pump and new Innovative concept resulting reliable and simple design. |
| |
FEATURES |
| |
* |
In Rotomatik there is only one shaft resulting compact and light weight , eliminates bulky designs. |
* |
One shaft causes smooth and vibration free running and eliminates bearing problems normally found in coupled one. |
* |
Sound level decreases by 10 db. than coupled unit. |
* |
Better efficiency compare to any another. |
* |
Dismantling, assembly is very simple and fast for maintenance |
|
|

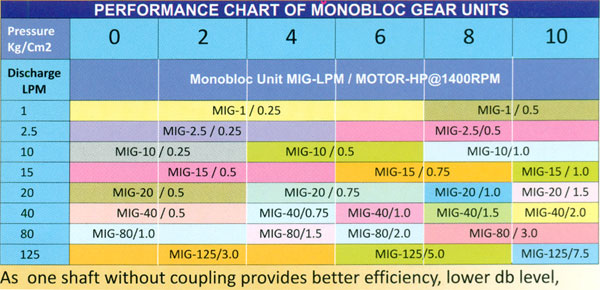

| RANGE |
| * Pressure |
: |
up to 15kg/cm |
| * Discharge |
: |
1lpm to 180 lpm |
| * Pipe size |
: |
1/4” BSP to 11/2”
BSP |
|
|
|
| |
MATERIAL OF
CONSTRUCTION |
* Pump Body |
: |
CI. Gr. Fg200. or SS-316 (optional) |
* Back Cover with P.R.V |
: |
CI. Gr. Fg200. or SS-316 (optional) |
* Rotor Assembly |
: |
gear sintered iron, shaft En8 |
* Bush |
: |
Sintered Bronze or bearing end
support |
*Oil Seal |
: |
Nitrile/ viton/ PU Rubber |
* Motor |
: |
electric with CI or Aluminium shell and F
Class insulation with S1
duty |
|
| |
Also available in stainless steel (CF 8 & CF 8M) construction on request. |
| |
| APPLICATION |
| * |
MIG Series of pumpset is used to handle viscous fluids and transfer fuel oils.. |
| * |
It has got different applications in cooling, refrigeration, transfer , process Industries. |
|
| |
Rotary gear pumps are widely used in Paper Mills, Refineries, Steel Mills and Textile industries and foundries. |
|
 |
 |
 |
 |
|
| |
|
| |
 |
|
